Edge Wraps

Edge metallization can be added as an alternative to via or slotted wraps. This process can be photo defined if needed.

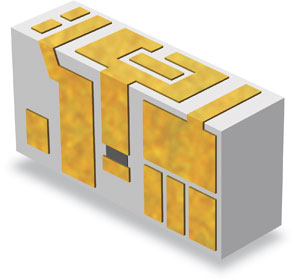

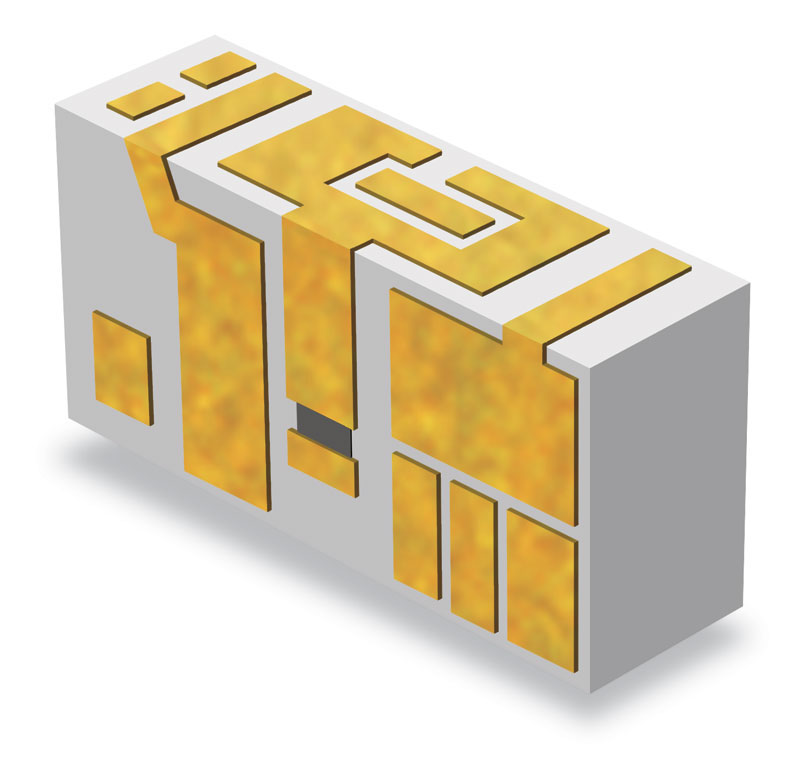

Edge Defined Wraps

ATP offers alternative, cost-effective Indented Edge Wraps versus Edge Defined Wraps. Contact ATP Sales for additional details.

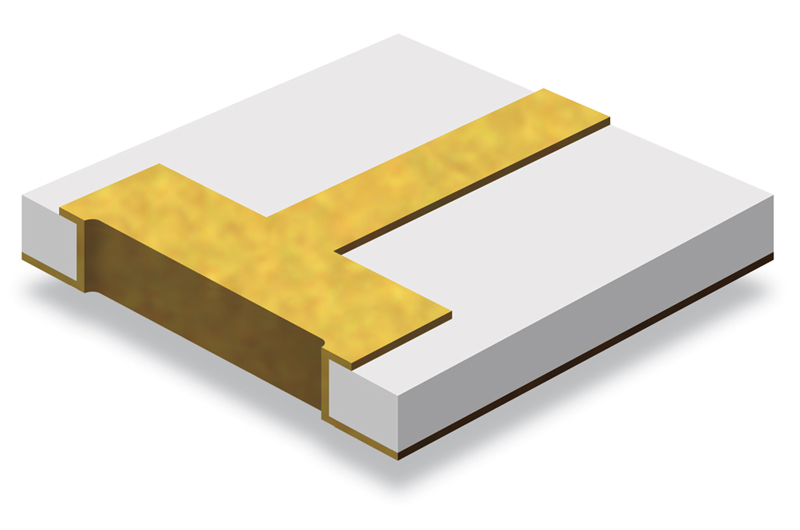

Indented Edge Wraps

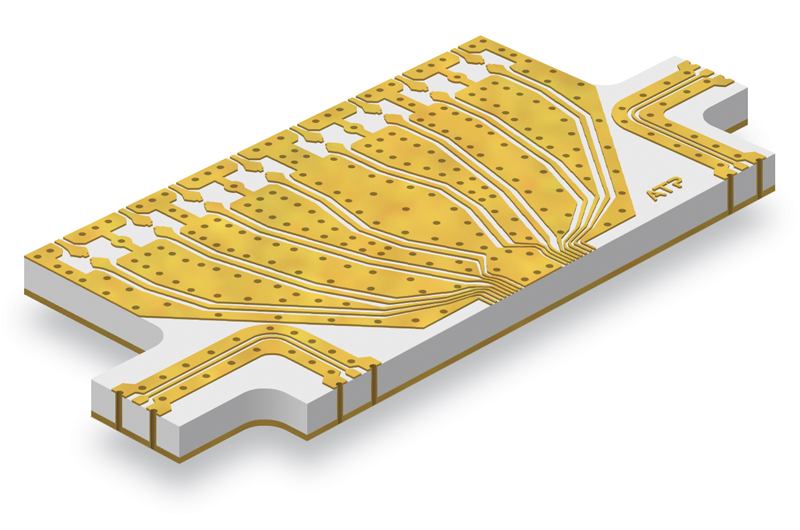

Co-Planer Wave Guide

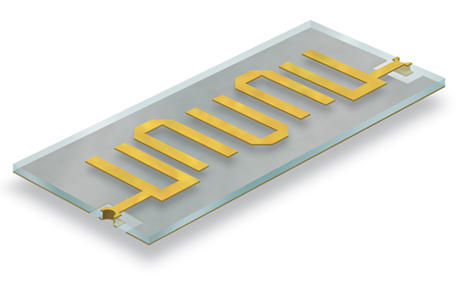

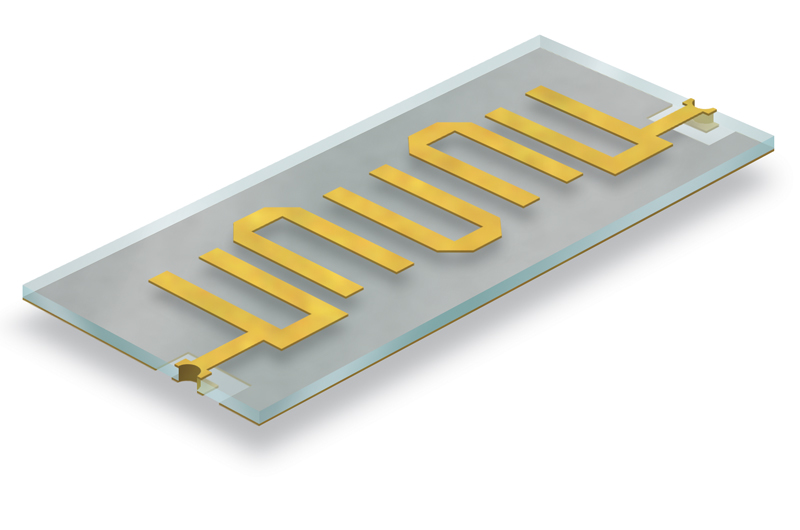

Edge Wrap for Surface Mount Technology
